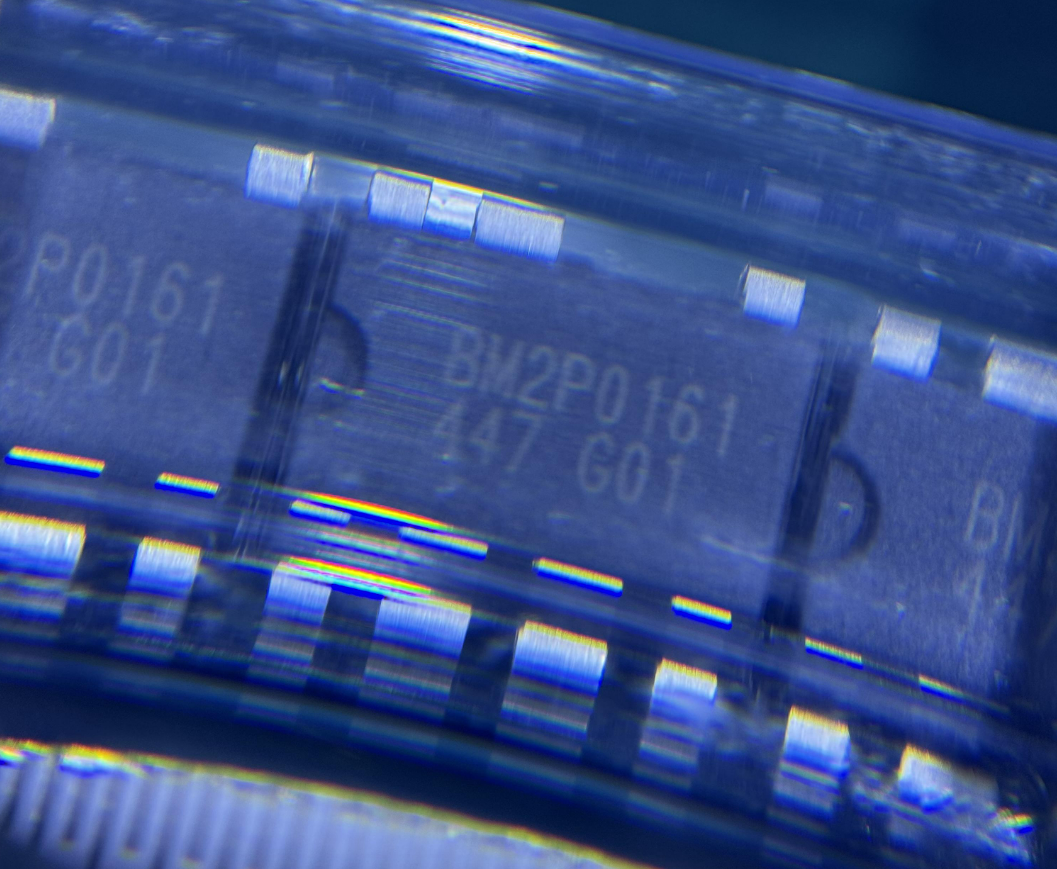

In-Depth Analysis of BM2P0161-Z High-Performance AC/DC Converter
1. One-Sentence Description
The BM2P0161-Z is a PWM-type AC/DC converter integrated with a 730V startup circuit and switching MOSFET, specially designed for low-power appliances. It supports isolated/non-isolated topologies and features high efficiency and wide voltage adaptability.
2. Core Features
- Full-Mode Control: Adopts PWM current-mode control, supporting frequency skipping (125Hz), burst operation (reducing power under light load), and frequency regulation (65kHz typical value) to optimize efficiency and EMI.
- Multiple Protection Mechanisms: Integrates VCC under-voltage/over-voltage protection, SOURCE pin open/short circuit protection, soft start, over-current protection (with AC voltage compensation), and thermal shutdown functions.
- Flexible Design: Externally adjustable current detection resistor and FB pin feedback regulation adapt to various output specifications; built-in 730V high-voltage MOSFET reduces the number of peripheral components.
- Low-Power Optimization: Intelligent charging management for the VCC pin, light-load burst mode, and frequency reduction function achieve standby power consumption below 3mW (at 240V input).
3. Core Technical Specifications
| Parameter | Typical Value/Range | Remarks |
| Input Voltage | 8.9V–26V (VCC) | Supports wide voltage input |
| Output Withstand Voltage | 730V (DRAIN) | Maximum withstand pulse voltage 730V |
| Quiescent Current | 0.65mA (Typ) | Low standby power consumption |
| Switching Frequency | 65kHz (Typ) | Adjustable via FADJ pin |
| Efficiency | >85% (typical load) | Optimized core loss and conduction loss |
| Operating Temperature | -40℃–+105℃ | Adapts to harsh environments |
4. The Story Behind the Chip
The BM2P0161-Z was developed amid the industry trend of home appliance intelligence and energy efficiency upgrades. Aiming at the pain points of traditional AC/DC converters, such as high standby power consumption, severe EMI interference, and complex design, ROHM solves these issues through the following innovations:
- 730V Startup Circuit: Replaces traditional discrete solutions, shortens startup time (<0.1s@10μF), and reduces standby energy consumption.
- Integrated Design: Packages MOSFET, control logic, and protection modules into one, reducing the number of peripheral components (only a few resistors and capacitors are needed).
- Patented Protection Technology: LEB (Leading Edge Blanking) blanking technology eliminates switching transient interference, and the VSOURCE compensation algorithm improves over-current protection accuracy.
5. Design Philosophy
The BM2P0161-Z adheres to the trinity philosophy of “high reliability × simple design × green energy saving”:
- Reliability: Withstands HBM ESD 4kV protection, thermal shutdown (TSD), and other multiple protections, suitable for industrial-grade applications.
- Simplicity: Provides detailed reference circuits (such as Flyback typical application Figure 15) and supports DIP7K/DIP7WF dual packages for fast layout.
- Environmental Protection: Frequency skipping function reduces EMI radiation, meeting international energy efficiency standards (such as CoC Tier2).
6. Application Scenarios
Widely used in low-power consumer and industrial devices:
- Home Appliances: Air conditioner remote controls, air purifiers, power modules for IH rice cookers.
- Consumer Electronics: Mobile phone/tablet chargers, Bluetooth speaker adapters.
- Industrial Control: Sensor power supply units, auxiliary power supplies for smart meters.
7. Unique Advantages
- Ultra-Low Standby Power Consumption: Achieves industry-leading standby energy consumption at the 0.3mW level through VCC charging management and burst mode.
- Wide Voltage Tolerance: The DRAIN terminal withstands 730V transient high voltage (10μs pulse), avoiding damage from lightning surges.
- Debugging Friendliness: Provides detailed protection timing diagrams (Figure 4) and PCB thermal design guidelines (Figure 14) to shorten the R&D cycle.
8. What Engineers Must Know When Selecting
- Absolute Maximum Ratings: VCC must not exceed 32V, and the DRAIN pulse current must be below 12A (BM2P0161-Z).
- Key Thermal Design: The recommended single-layer PCB heat dissipation area is ≥74.2mm×74.2mm, and derating is required in high-temperature environments.
- Protection Mechanism Linkage: After protection is triggered due to abnormal FB pin voltage (>VFOLP1A for 128ms), a 332ms reset is required.
Package Compatibility: The DIP7WF version supports wave soldering; pay attention to the pin pitch (2.54mm) and thermal pad design.
Conclusion: The BM2P0161-Z is an ideal choice for low-power AC/DC conversion due to its high integration, ultra-low power consumption, and strong adaptability. Engineers can fully leverage its performance advantages through precise parameter matching (such as setting the frequency skip amplitude via CFADJ) and rigorous thermal design.
