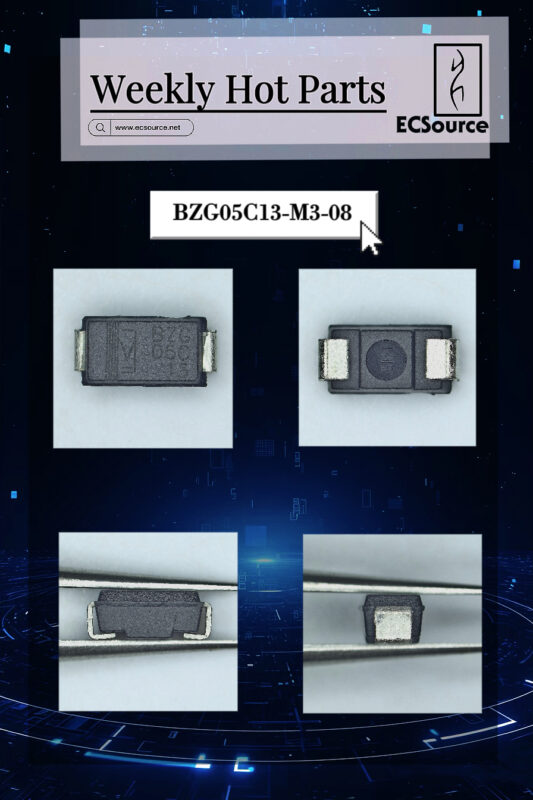

BZG05C13-M3-08 is a 13V, 1.25W surface mount Zener diode manufactured by VISHAY. It adopts SMA (DO-214AC) package and belongs to commercial-grade general-purpose electronic components.
This device is mainly applied for voltage regulation, overvoltage clamping and circuit protection. It is widely used in switching power supplies, adapters, industrial control boards, smart home devices and consumer electronic products.
Adopting glass passivation chip technology, the diode features high stability and reliability. It supports SMT mass production, wave soldering and reflow soldering. It complies with RoHS and halogen-free environmental standards, with an operating temperature range of -65℃ to +150℃.
Model Description: The number 13 stands for 13V nominal zener voltage; M3 refers to commercial grade (non-automotive); 08 indicates 7-inch reel packaging with 1500 pieces per reel. For automotive applications, the automotive-grade model BZG05C13-HM3-08 is recommended as a direct alternative.
Core Electrical Parameters
- Nominal Zener Voltage (Vz): 13V (12.4V ~ 14.1V)
- Power Dissipation (Pd): 1.25W
- Max Dynamic Impedance (Zzt): 10Ω
- Reverse Leakage Current (Ir): 500nA @10V
- Forward Voltage (Vf): 1.2V @200mA
