In-Depth Analysis of ADPD188BI Optical Smoke Detection Module
1. One-Sentence Description

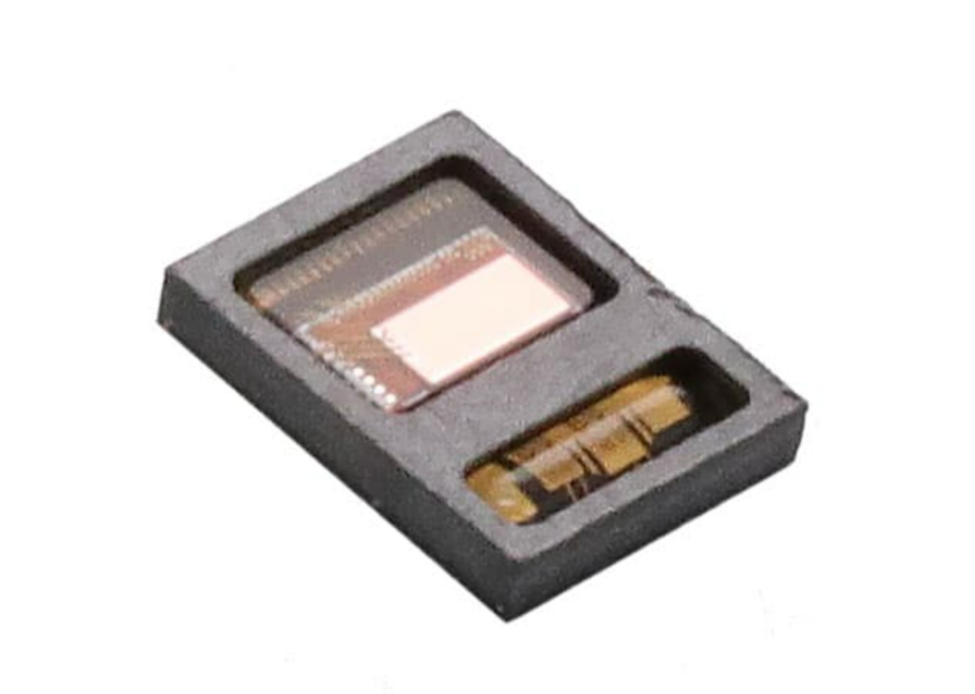

The ADPD188BI is a highly integrated optical smoke detection module that achieves high-precision smoke recognition through dual-wavelength (blue light + infrared light) technology, designed for smart home, industrial security, and other scenarios.
2. Core Features
Ultra-Compact Package: A 3.8mm×5.0mm×0.9mm module with built-in optical components and dual LEDs (blue light + infrared light).
Dual-Channel Detection: Integrates two photodiodes (PD1/PD2) to support high-sensitivity signal acquisition in independent or combined channels.
Flexible Expansion: Provides 2 external sensor input interfaces (EXT_IN1/EXT_IN2) for connecting CO, temperature, and other sensors.
Efficient LED Drive: Three-channel 370mA LED drive supports customizable pulse width and cycle.
High-Resolution Data Acquisition: 20-bit burst accumulator + 27-bit data reading optimizes performance in low-signal-to-noise ratio environments.
Multi-Communication Interfaces: Supports I²C/SPI protocols and is compatible with mainstream microcontrollers.
3. Core Technical Specifications
| Parameter | Typical Value/Range | Key Advantages |
| Power Consumption | 0.3μA (standby) | Ultra-low power extends battery life |
| Signal-to-Noise Ratio (SNR) | 78dB (single pulse) | Strong anti-interference for complex environments |
| Sampling Rate | Up to 2kHz | Real-time response for rapid detection |
| LED Peak Current | 370mA (adjustable) | Flexible light intensity for various scenarios |
| Photodiode Sensitivity | 0.2A/W (blue light) | High-precision detection of weak optical signals |
4. The Story Behind the Chip
The ADPD188BI emerged from the need to innovate traditional smoke detection technologies. Traditional solutions are prone to false alarms due to interference from dust, steam, etc. ADI solves the signal noise suppression problem through optical dual-wavelength technology and adaptive signal processing algorithms. Its core lies in:
- Dual-wavelength differentiation: Blue light (470nm) is sensitive to small particles (e.g., smoke), while infrared light (850nm) has strong penetrability. Combined analysis distinguishes smoke types.
- Dynamic calibration mechanism: Built-in 32kHz clock calibration and 32MHz timing adjustment ensure long-term stability.
5. Design Philosophy
- Low Power Priority: Uses burst-mode sampling and sleep cycle management to reduce average power consumption.
- Anti-Interference Optimization: Integrates TIA input impedance matching and modulation interference suppression circuits for strong light environments.
Modular Expansion: Reserved external sensor interfaces support multi-parameter fusion (e.g., temperature/humidity compensation).
6. Application Scenarios
- Smoke Alarms: Fire early warning for homes and commercial buildings (EN54-7 certified).
- Industrial Gas Monitoring: Detection of dust, steam, and other pollutants (with external CO sensors).
- Medical Equipment: Aerosol detection in respiratory monitoring.
7. Unique Advantages
- System-on-Chip Integration: Eliminates the need for external ADC/amplifiers, reducing PCB area and BOM costs.
- Dual Time-Slot Operation: Supports simultaneous independent measurements (e.g., smoke and CO detection).
- Automatic Gain Control: Dynamically adjusts TIA gain (25kΩ–200kΩ) based on ambient light.
8. What Engineers Must Know When Selecting
- Power Supply Design: VDD must be stable at 1.8V, and LED drive voltages (VLEDx) must match LED forward voltages (3.2V for blue light, 1.4V for infrared).
- Layout and Wiring: Separate AGND/DGND/LGND and place 0.1μF and 1μF decoupling capacitors nearby.
- Key Calibration Steps:
- 32kHz clock calibration (register 0x4B): Ensures sampling rate accuracy.
- 32MHz timing calibration (register 0x4D): Optimizes LED pulse alignment.
- Anti-Saturation Design: Set CvLED capacitor (formula: [ ]to prevent LED drive overshoot.
Conclusion: The ADPD188BI has become a benchmark solution in the smoke detection field due to its high integration, dual-wavelength innovation, and low-power design. Engineers should focus on power supply stability, calibration procedures, and PCB layout to fully leverage its performance advantages.
